In Shandong Huajing Glass Co., Ltd, our creative employees including R&D experts and technicians largely contribute to the successful development of New condition and refrigeration spare parts manufacture. We expect great profitability from the product release can benefit all customers. Freezer Parts Influenced by the market trends and customers' requirements, the design of Reach in glass door / Freezer glass door / Chiller glass door / Refrigerator glass door is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.
| After-sales Service Provided: | Overseas Call Centers | Warranty: | 5 years |
| Type: | Freezer Parts | Application: | Commercial |
| Power Source: | Electric | Place of Origin: | Shandong, China |
| Brand Name: | SHHAG | Model Number: | SDHJ-02 |
| Glass: | hollow , Low -E, tempered glass | Color: | Black , Gold , silver or customized |
| Size: | As your needed | Function: | Anti fog /Anti-condensation/Anti-frost |
| Frame / Handle: | Aluminium alloy | Glass door: | 1 to 7 doors for your choice |
| Lock: | Customized | Certification: | ISO .CE. ROHS .CCC |
| OEM: | Welcome | Temperature: | -30~+8 degree celsius |
Manufacturer cold storage chiller/freezer glass door for supermarket.
Feature:
1. Narrow frame doors without pillar increase visual area, which is convenient to load & unload machandises.
2. Waterproof Lighting tube, working stable for long term in cold wet environment.
3. Door and frame with electric heating function, without dewing.
4. The upper door spindle, 90° door stopper, bottom hinge system are made of 304 stainless steel, with long service life and high abrasion resistance index.
5. Customization of products can be provided on customer's request.
6. Relible performance, energy saving rate is higher than 20%.
Specifications.
|
1 door Dimension |
1700mm*650mm*37mm,663mm*763mm*37mm, OR customized |
|
Voltage |
220V/50Hz, OR adjust the voltage to your country standard |
|
Door QTY |
as your request |
|
Thickness |
4mm+6A+9A+3mm,3mm+6A+9A+3mm,4mm+6A+3mm+15A+3mm OR customized |
|
Specification |
1. Tempered Low-e Insulating glass |
|
2. Outer Framed |
|
|
3. Silver bar |
|
|
4. Door gasket with magnet |
|
|
5. Safe handle |
|
|
6. Door spindle |
|
|
7. Self-closing systems |
|
|
8. With heated safety glass and heated frame |
|
|
9. 90° hold-open feature |
|
|
10. Electrode and Heating wire |
|
|
Frame |
1. Eco-friendly PVC alloy and ABS |
|
2. Aluminum alloy |
|
|
3. Customized |
|
|
Handle |
1. Aluminum |
|
2. Customized |
|
|
Color |
Silver,golden OR customized |
|
Service |
ODM/OEM/customer's designs are available |
|
Application |
home refrigerator,commercial refrigeration cabinets,supermarket refrigerator |
|
Type of glass |
Tempered white glass,tempered Low-e glass |
|
Hollow glass layer |
Single, double, triple OR customized |
|
Advantages of our doors |
1.Reduction of electricity consumption. |
|
2.Optical performance,Clear view of the goods on the shelf. |
|
|
3.Anti-fog,Anti-condensation,Anti-frost |
|
|
4.Thermal insulation,Constant cooling temperature keeping products fresh. |
|
|
5.Eco-friendly,Reduction in Carbon footprint. |
|
|
6.Easy handling and access for customers and staff. |
|
|
7.90° hold-open feature for easy loading |
|
|
8.Safety glass door |
|
|
9.used of polysulfide rubber to seal, door gasket with magnet. |

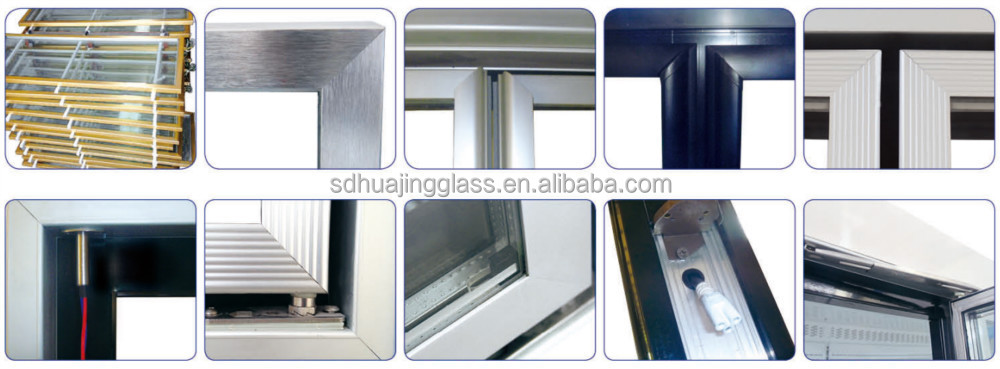

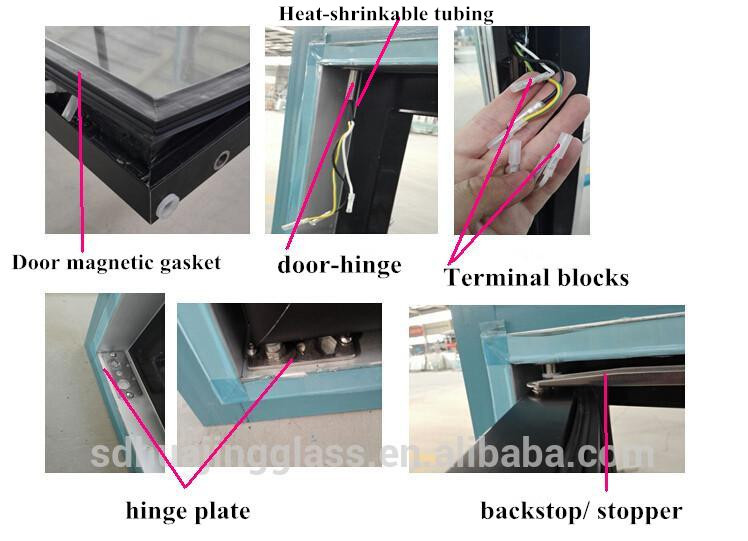

Details of the glass doors.
| Above Zero C degree ( for cooler). | |
| Stand Combination: | |
| Outer Glass | 4mm Tempered Glass |
| Air Space | 15mm Air Gap |
| Inner Glass | 4mm Low-E coated |
| Alternative Combination: | |
| Outer Glass | 4mm Tempered Glass |
| Air Space | 15mm (Argon filled) |
| Inner Glass | 4mm Low-E coated |
| Below Zero C degree (for freezer -18° to -25°C | |
| Standard Combiantion: | |
| Outer Glass | 4mm Tempered Low-E Coated |
| Air Space | 20mm (Dry air or Argon filled |
| Intermediate Glass | 3.2mm Tempered glass |
| Inner Glass | 4mm Tempered Glass |

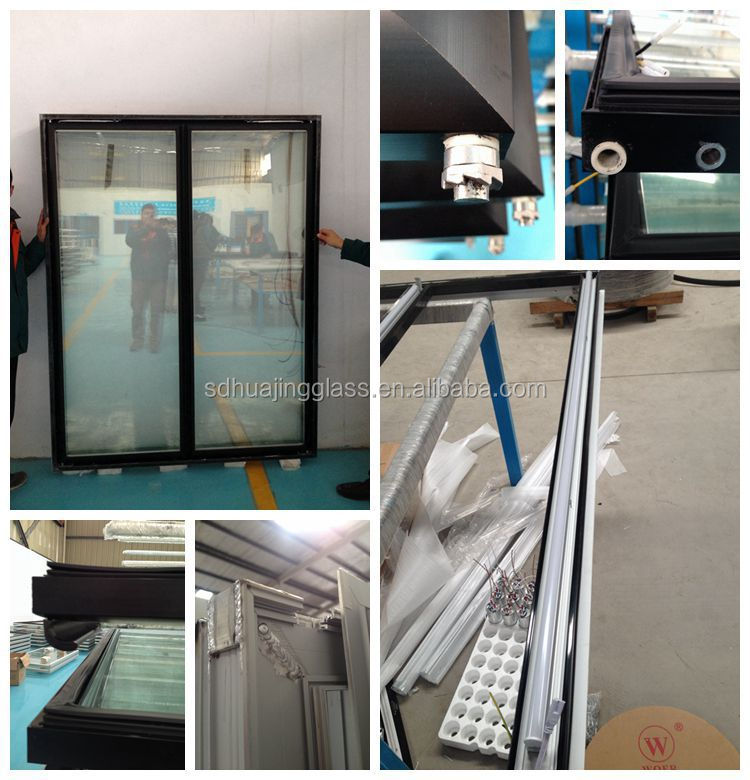

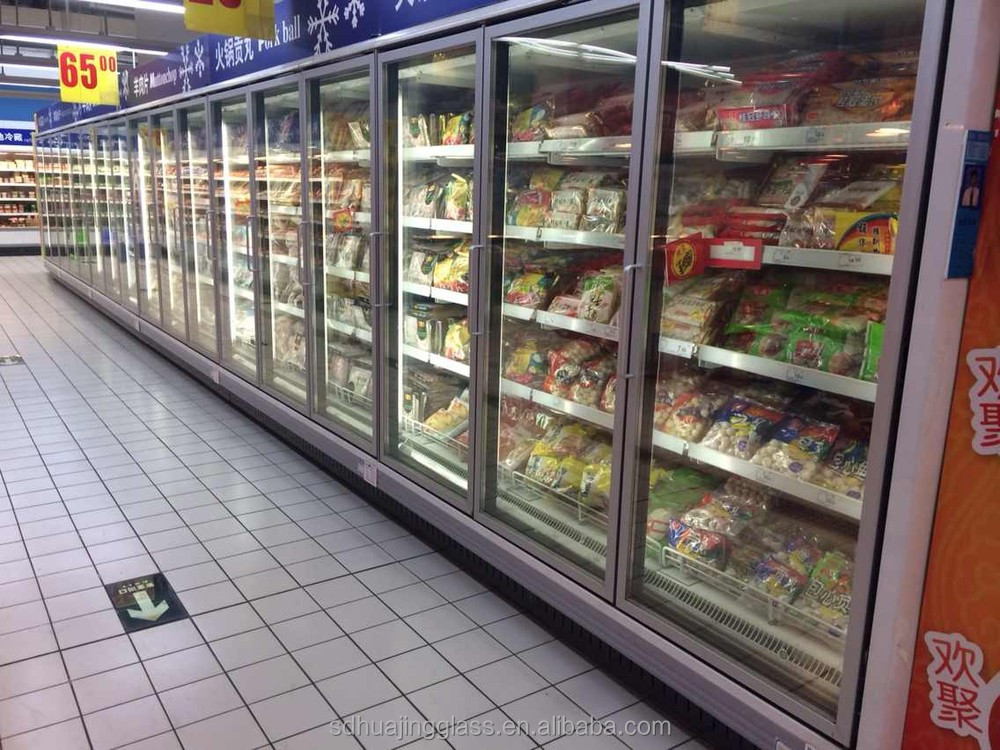

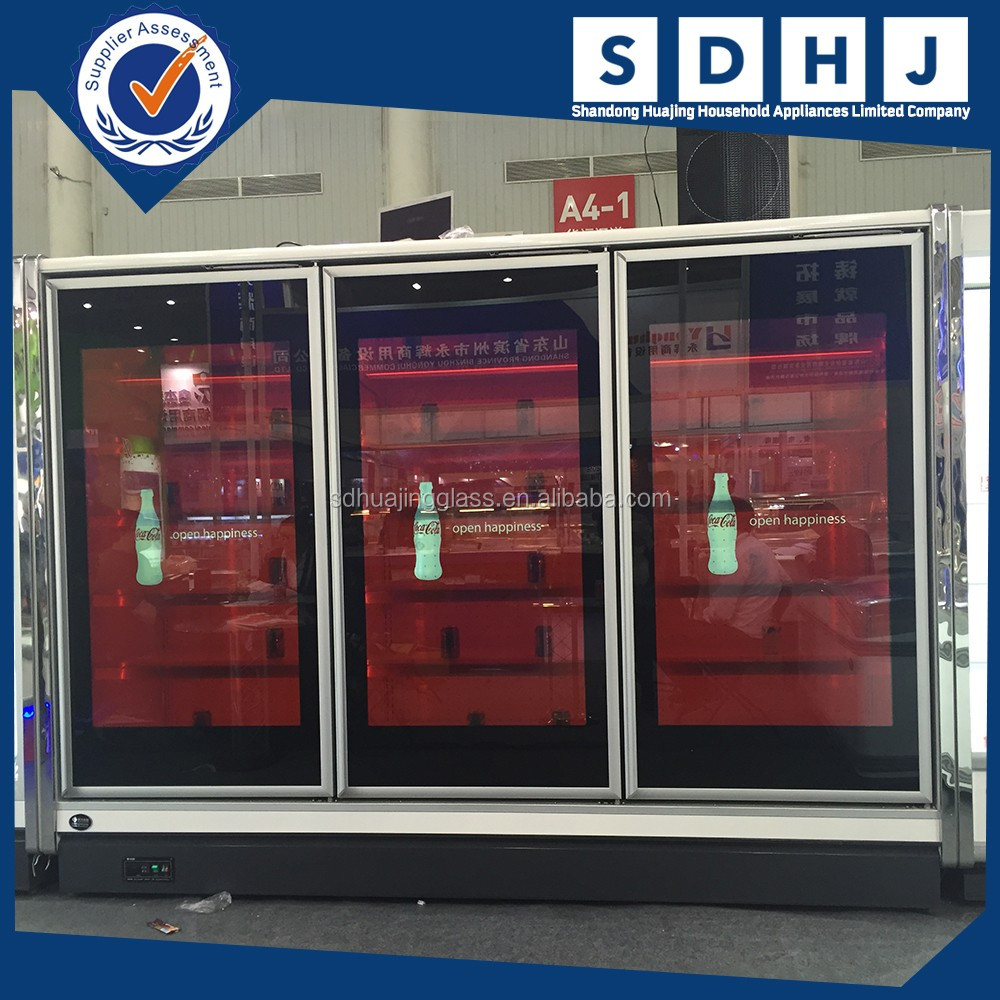

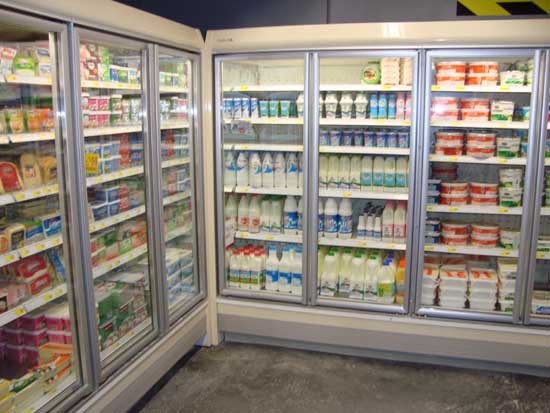

Any pictures of our glass door:
Company information:
ShanDong HuaJing Household Appliances Glass Co.,Ltd.
1. Completely design, R&D, manufacturing, trade and logistic system.
2. More than 60 high-precision production equipments.
3. Excellent team, advancing corporate culture.
4. Ultra-clean dust-free workshop, trict quality testing, safe packaging.
5. Cover an area of 90,000 square meters( workshop area 35,000square meters) with more than 200 workers.
6. OEM & ODM welcomed, We can produce according to your requirement with specification provided ,OEM order is acceptable and warmly welcomed, as per your requests in color, style, logo and size.
Advantages of our Company:
