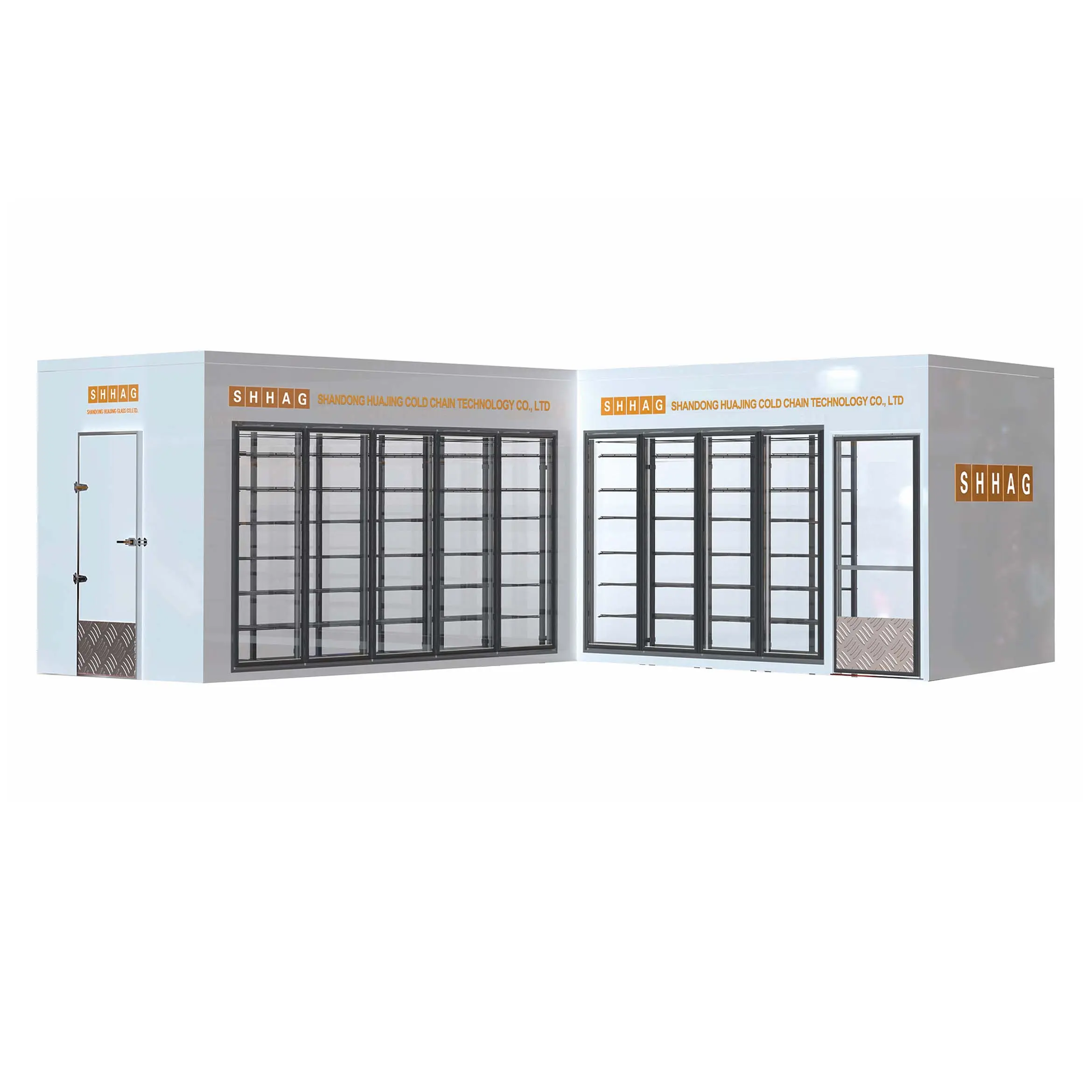

Commercial Walk-in Cold Room
OEM & ODM Commercial Walk-in Cold Room Manufacturer

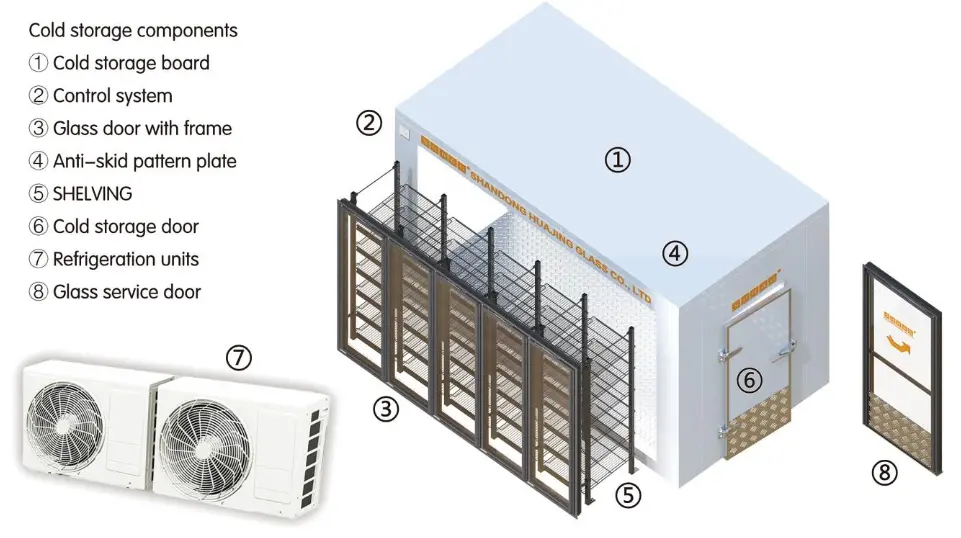

We will provide our customers with the best complete cold room solution, including panels, glass doors, and refrigeration units. Our cold room is not only easy to install, but also has a beautiful appearance and is more energy-efficient.
- Items No - CR-01
- Certificates - CE, ETL, DOE, UL, ROHS, SGS, SASO and CCC
- MOQ - 1 PCS
- Customization - Customized logo, Customized size
- Payment terms - T/T, L/C
- Products origin - Shandong, China
- Loading port - Qingdao, China
- Leading time - 20 DAYS
Standard features
- Thickness: 50mm/75mm/100mm/120mm/150mm/200mm
- PU&PIR for Cooler/Freezer
- Cam-Lock or Plug-in splice method
- With display glass door & shelving system
Options
- Custom sizes available
- Refrigeration units
- Heated foaming swing entry door
Comprehensive Overview | |||
Product |
Walk in coole, display cold room |
Application |
Supermarket/Hotel/Bar/Food/Medical treatment etc |
Panel Size |
Customized |
Applicable Temperature Range |
-75~+10℃ |
Applicable Voltage |
110v,220v,380v |
Power |
Customized according to cold room area |
Certificate |
CE,ISO9001,CB,GS,ROHS |
Warranty |
2 years |
Cold Room Door |
Heated cooler&freezer glass door |
Cold Room Panel |
Polyurethane Sandwich Panel |
PU Panel Specifications | |||
Metal Layer Specification |
0.4/0.5/0.6/0.8mm |
Panel Width |
Customized |
Matel Layer Material |
Color steel/stainless steel/Embossed Aluminum etc |
Panel Color |
Ragular grey white(can be customized) |
PU Density |
40±2kg/m³ |
Panel Thickness |
75mm, 100mm, 120mm, 150mm |
Bending Strength |
331MPa |
Heat Transfer Coefficient |
0.024W/㎡·k |
Fire Rating |
B2 |
Connection Method |
Plug in/cam lock |
Base Plate Thickness Applicable Temperature Range | |||
High Temperature 0~(+5)℃ |
75mm |
Medium Temperature(-5)~(+10)℃ |
75mm/100mm |
Low Temperature(-18)~(-30)℃ |
100mm/120mm/150mm |
Ultra Low Temperature(-75)℃ or above |
150mm |
