OEM & ODM Commercial Refrigeration Glass Door Manufacturer
Our products are crafted to meet the highest standards, ensuring enhance both the functionality and appearance of your commercial refrigeration equipments.
- Model number - CD-02
- Certificate - CE, ETL, DOE, UL, ROHS, SGS, SASO and CCC
- MOQ - 50 PC
- Customization - Customized logo, Customized size, Customized packaging
- Warranty - More Than 5 Years
- Payment terms - T/T, L/C
- Products origin - Shandong, China
- Loading port - Qingdao, China
- Leading time - 20 DAYS

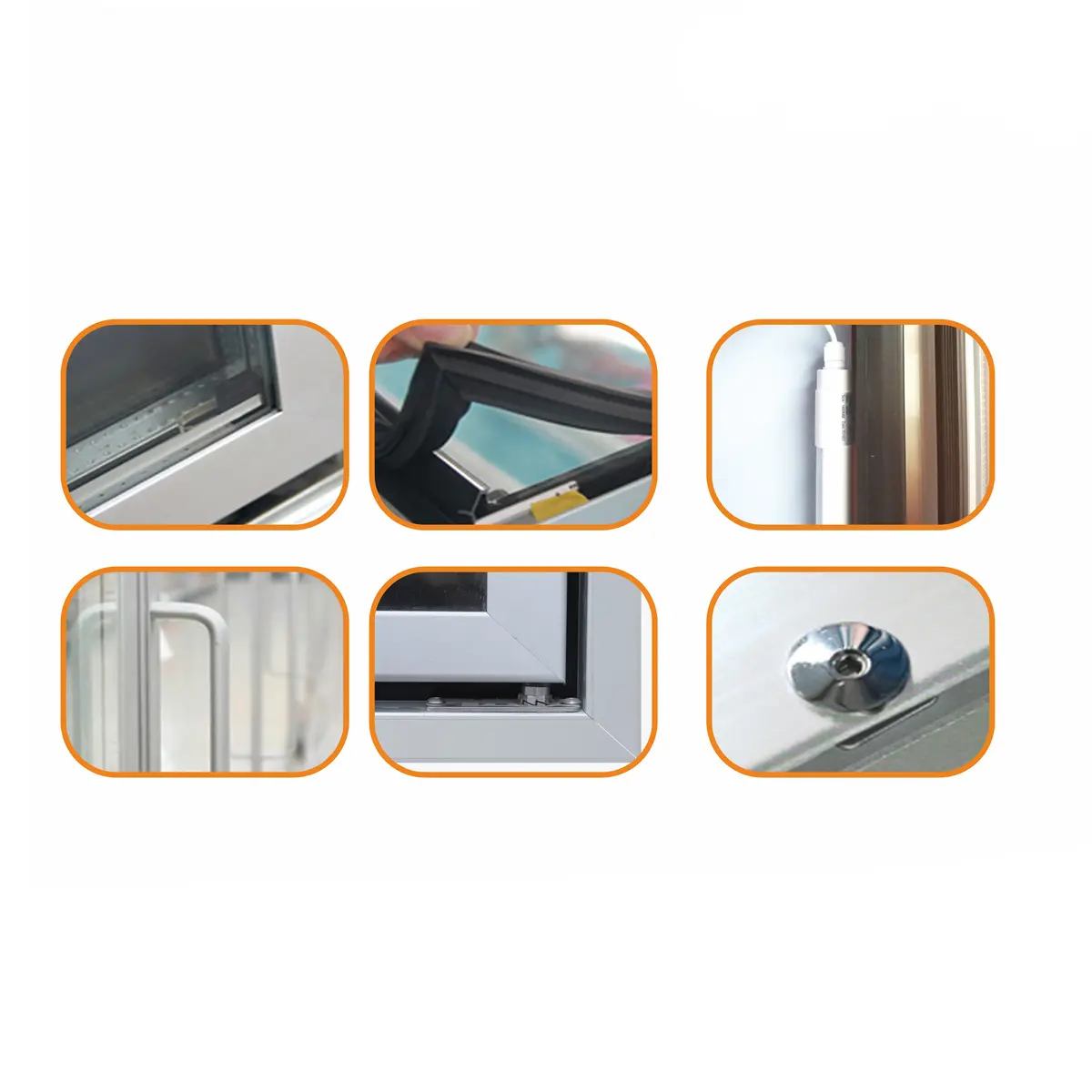

Standard features
- 2-pane Non-heated glass with argon gas(Cooler)
- 3-pane heated glass with argon gas (Freezer)
- Aluminum alloy heated door frame and frame Slim handle
- Aluminum handle
- 26mm wide flange
- TPE magnetic gasket
- Door hold-open and self-close
Optional features
- Reversible door swing
- Customized Logo
- Color: Black, Silver
- LED light switch
- Lock
Frame -opening size |
|||||
1door |
2door |
3door |
4door |
5door |
|
|
Glass door size 24’’×75’’ |
2’-2’’x6.45’ |
4’-2 3/5’’x6.45’ |
6’-3’’x6.45’ |
8’-3 1/2’’x6.45’ |
10’-4 1/10’’x6.45’ |
|
Glass door size 26’’×79’’ |
2.34’x6.8’ |
4.54’x6.8’ |
6.75’x6.8’ |
9’x6.8’ |
11.2’-x6.8’ |
|
Glass door size 30’’×79’’ |
2.7’x6.8’ |
5.21’x6.8’ |
7.76’x6.8’ |
10.3’x6.8’ |
12.84’x6.8’ |
Custom sizes available | |||||

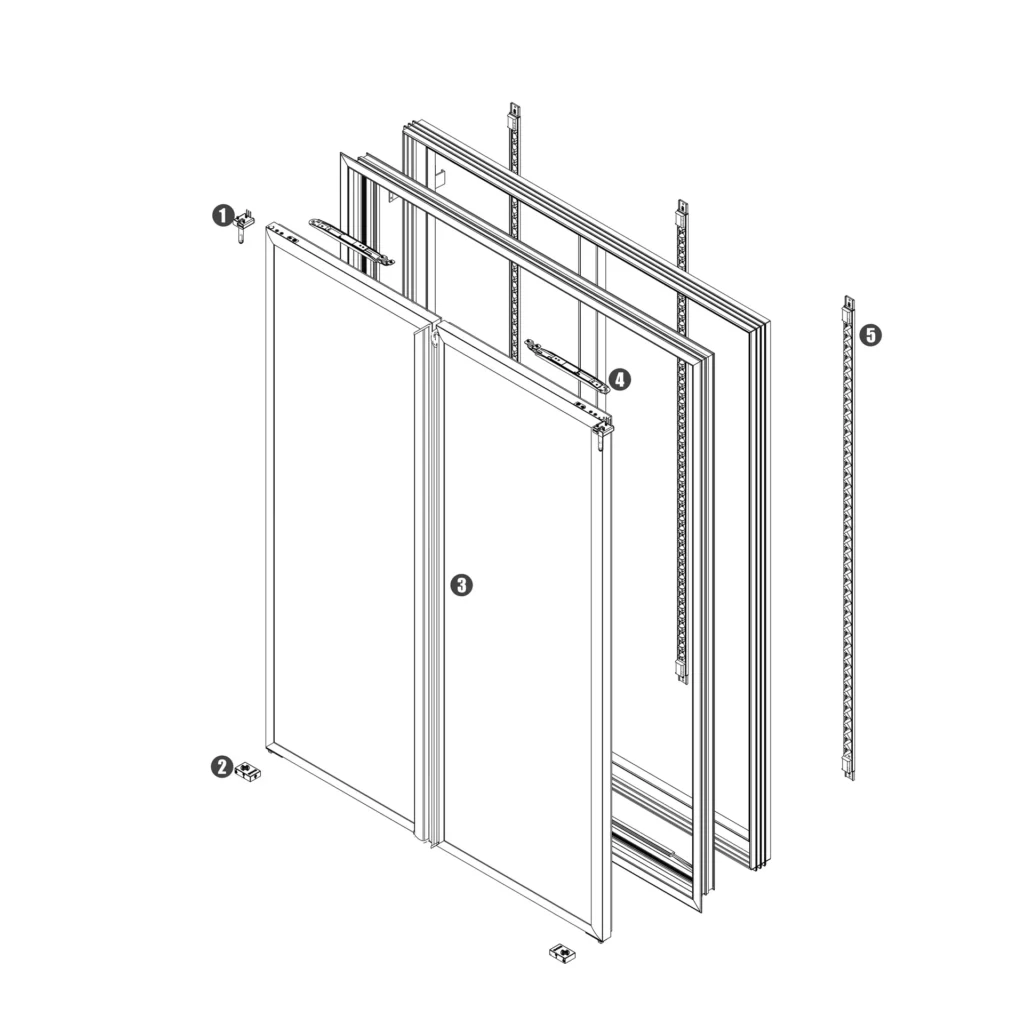

1. Upper Hinge
Passed 300,000 door opening and closing tests
2. Resolution
Max Resolution:1920*1080
3. Full Length Handle
Suitable for any hand shape, more convenient to open and close the door
4. Door Stopper
Door opens to 90 degrees and stops, making it easier for customers to take the goods
5. LED Lighting
Working life ＞ 100,000 hours
