OEM & ODM Walk In Cooler / Freezer Glass Door Manufacturer
Walk-in Coolers & Freezers Beer Caves for Sale with heating Glass door Food Beverage Factory commercial refrigerator glass door
- Items No - CD-01 - PRO
- Certificates - CE, ETL, DOE, UL, ROHS, SGS, SASO and CCC
- MOQ - 50 PC
- Customization - Customized logo, Customized size, Customized packaging
- Payment terms - T/T, L/C
- Products origin - Shandong, China
- Loading port - Qingdao, China
- Leading time - 20 DAYS
Standard features
- 3-pane Non-heated glass with argon gas(Cooler)
- 3-pane heated glass with argon gas (Freezer)
- Heavier frame and center mullion profile than standaroFull length handle
- Aluminum alloy heated door frame and frame Slim handle
- 32mm wide flange
- TPE magnetic gasket
- Door hold-open and self-close
- New hinge system
- LED light
Optional features
- Reversible door swing
- Customized Logo
- Color: Black, Silver
- LED light switch
- Lock
Frame -opening size |
|||||
|
1door |
2door |
3door |
4door |
5door |
|
Glass door size 24’’×75’’ |
2’-2’’x6.45’ |
4’-2 3/5’’x6.45’ |
6’-3’’x6.45’ |
8’-3 1/2’’x6.45’ |
10’-4 1/10’’x6.45’ |
|
Glass door size 26’’×79’’ |
2.34’x6.8’ |
4.54’x6.8’ |
6.75’x6.8’ |
9’x6.8’ |
11.2’-x6.8’ |
|
Glass door size 30’’×79’’ |
2.7’x6.8’ |
5.21’x6.8’ |
7.76’x6.8’ |
10.3’x6.8’ |
12.84’x6.8’ |
Custom sizes available | |||||

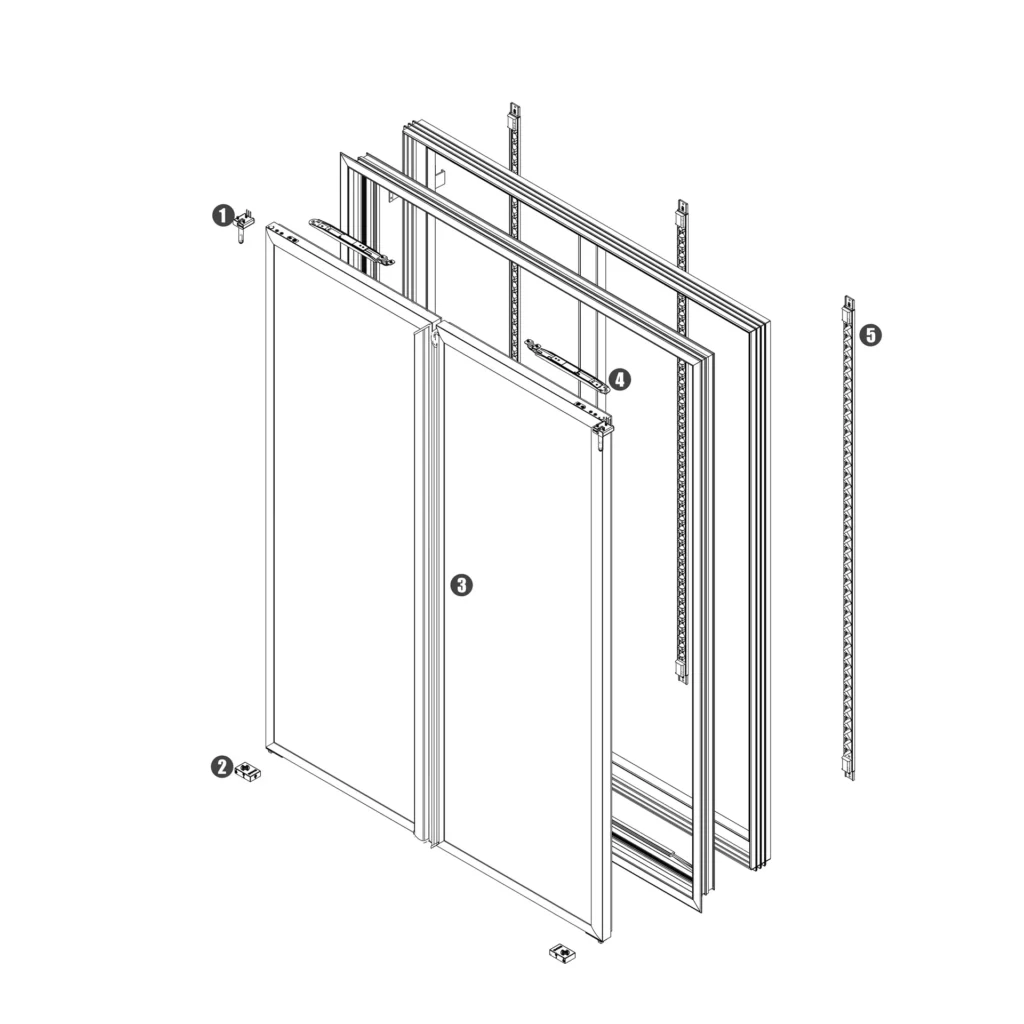

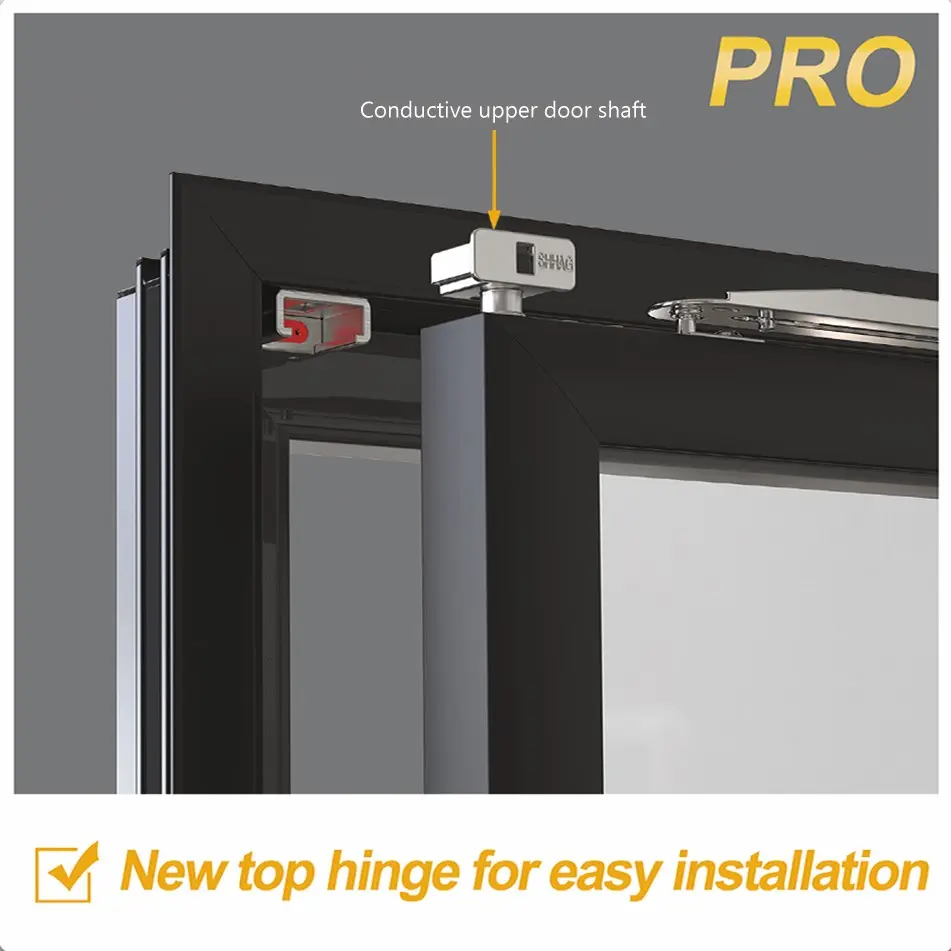

1.Upper Hinge
The lock tongue uses 0.8mm high -strength steel, deductioload> 500kg6A continuous current temperature rising <5KAnti fatigue door opening and closing>300000 times
2. Bottom Hinge
The reliability of the regulating mechanism reaches 10KCAnti fatigue door opening and closing>300000 times
3. Full Length Handle
Suitable for any hand shape, more convenient to open and close the door
4. Door Stopper
Door opens to 90 degrees and stops, making it easier for customers to take the goods
5. LED Lighting
High protection performance-lP65
Long service life -5 years warranty
Flexible customization
